Smith Machine Buying Guide: Types, Bar Weight, Space and Cost

A Smith machine locks the barbell onto two guide rods, so the bar travels a fixed path and can be hooked onto the frame at almost any height with a twist of the wrists. That makes it one of the easiest ways to squat, press and lunge heavy without a spotter, but Smith machines are not interchangeable. Starting bar weight, bar angle, carriage hardware, footprint and build quality vary a lot between a $400 home unit and a $4,000 commercial one. This Smith machine buying guide walks through the types, what the bar actually weighs, the space you need and what each tier costs, using the machines we carry at Peak Flow Fitness as real examples.

How a Smith Machine Works

The bar rides in a carriage on two vertical (or slightly angled) guide rods. Rotate the bar a few degrees and hooks on the bar catch slots or cross-members on the frame, which is why you can rack it at any of a dozen or more lockout points. Most models also add adjustable safety stops below the bar as a second layer of protection. The design takes its name from Rudy Smith, a Los Angeles gym executive who developed a machine originally conceived by fitness pioneer Jack LaLanne.

The fixed path is the point. You trade the balance demand of a free barbell for a guided movement you can push close to failure alone. If you mostly train with a free barbell, a power rack may be the better anchor, and our strength equipment buying guide covers how racks, Smith machines and leg presses fit together.

Smith Machine Types: Standard, Counterbalanced, Angled, 3D and Combo

Standard Smith machines have no counterbalance, so you lift the full weight of the bar and carriage. The Body-Solid Powerline PSM144X uses a 1-inch bar for standard plates (Olympic adapter sleeves are optional), and the Best Fitness BFSM250B uses an Olympic bar with 2-inch sleeves and a 300 lb weight capacity.

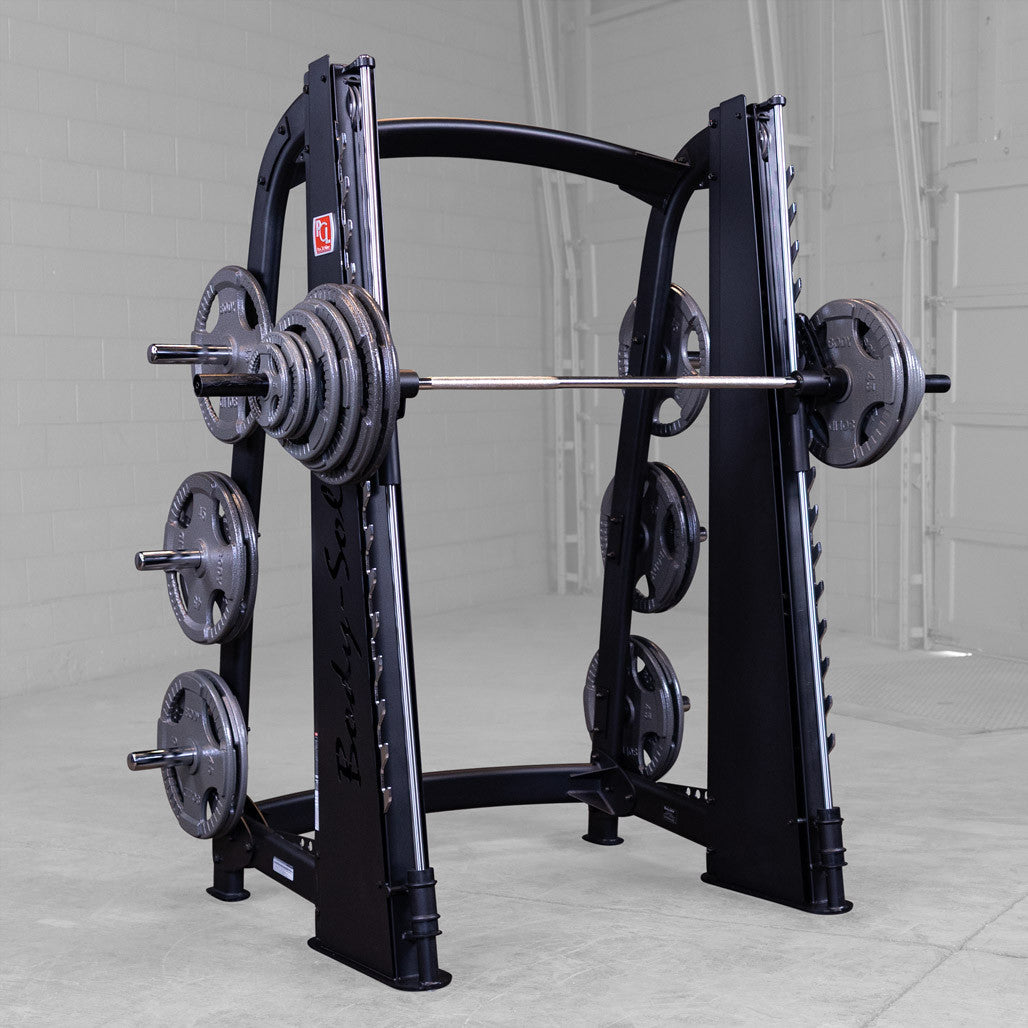

Counterbalanced Smith machines use counterweights to offset the bar, which lowers the starting resistance so lighter or newer lifters can begin with a manageable load. The Body-Solid ProClubLine SCB1000B is counterbalanced to 6 lb and rated to handle up to 1,000 lb. The York Barbell STS Counter Balanced Smith Machine and the Muscle D Fitness commercial Smith machine also use counterbalanced bars.

Angled Smith machines set the guide rods at a slight pitch instead of straight up and down. The Body-Solid Series 7 GS348B and the Powerline PSM200 use a 7-degree reverse pitch, and the York STS bar is angled at 5 degrees. Both Body-Solid models add a free-weight rack, so one frame covers guided and free-bar lifts.

3D or multi-dimensional Smith machines let the bar travel forward and back as well as up and down. The Muscle D MAX Rack moves vertically and horizontally at the same time, uses a rotating 44 lb Olympic bar and racks forward, rearward and low, with a walk-through front and a built-in pull-up station.

Smith combos and all-in-one gyms pair the Smith track with cables and stations. The Muscle D Megatron DAP / Smith Combo adds a dual adjustable pulley with two 180 lb weight stacks. At home, the Powerline Smith Gym PSM1442XS bundles a Smith machine, bench, 150 lb weight stack, lat row, pec, preacher curl and leg developer stations, and the Series 7 Smith Gym Package builds out the GS348B with a lat attachment, pec dec, heavy-duty bench, preacher curl and leg developer.

How Much Does a Smith Machine Bar Weigh?

There is no standard bar weight. The manufacturer sets it, and counterbalancing can make it far lighter than a free barbell. For reference, a men's Olympic weightlifting bar weighs 20 kg (about 44 lb) and a women's bar 15 kg (about 33 lb) under International Weightlifting Federation specifications. Here is what the product pages for our lineup state:

• Body-Solid SCB1000B: counterbalanced to 6 lb.
• Body-Solid Series 7 GS348B: Smith bar weighs 25 lb.
• Powerline PSM200: bar carriage weighs approximately 25 lb.
• Muscle D MAX Rack: 44 lb rotating Olympic bar.
• Muscle D commercial Smith: described as a "nearly weightless" counterbalanced Olympic bar.

The York STS and the Muscle D DAP combo are described as having low starting resistance but do not list a figure, and the PSM144X and BFSM250B pages do not state a bar weight. If the number matters for your training log, ask us before you buy. Because bar weights differ this much, a load on one machine will not transfer one-to-one to a free barbell, or even to a different Smith.

Linear Bearings vs Bushings

The carriage hardware decides how the bar feels. Linear bearings roll along the guide rods; bushings slide on them. On our lineup, the higher-end machines use bearings: the Muscle D commercial Smith uses precision linear bearings, the York STS runs linear bearings on 1½-inch case-hardened shafts, the Series 7 GS348B uses a linear ball bearing system and the SCB1000B uses club-quality bearings on case-hardened rods. Body-Solid's Powerline models (PSM144X, PSM200 and the PSM1442XS gym) use nylon bushings over polished chrome guide rods, the setup on these lower-priced home models.

Whichever you choose, follow the owner's manual for cleaning and maintaining the guide rods, and do it on a schedule rather than waiting until the bar starts to drag.

Smith Machine Safety: Lockouts, Stops and Weight Capacity

Count the lockout points and check the safeties before anything else. The PSM144X has 14 lockout positions, the PSM200 has 12, and the BFSM250B and Series 7 GS348B each have 20. On the GS348B, a 15-degree rotation of the bar engages the lockouts. All four include adjustable safeties or spotter arms below the bar.

Then check the rated capacity against what you lift today plus room to grow. Stated capacities on our lineup range from 300 lb on the BFSM250B and 400 lb on the PSM200 to up to 1,000 lb on the SCB1000B. If a product page does not list a capacity, ask before you load it near your maximum.

Smith Machine Footprint and Ceiling Height

Measure the room in three directions and compare it with the assembled size on the product page. Floor footprints on our lineup run from 47 × 66 inches (PSM200) up to 82.5 × 75 inches (MAX Rack), and the widest frame, the DAP / Smith combo, is 88 inches across. Height runs from 79 inches (BFSM250B and PSM200) to 93 inches on the taller Muscle D model, and Muscle D describes its 85-inch version as a fit for lower-ceiling rooms. If your ceiling is 8 feet (96 inches), a 93-inch frame leaves very little margin, so allow for rubber flooring under the machine and any pull-ups you plan to do on the top crossbar. Leave clear space at each end of the bar so you can load plates without bumping a wall, and space in front for a bench.

Smith Machine Comparison Table

Specs below are as stated on each product page. Prices are rounded and current as of October 2026; check the product page for today's price.

How Much Is a Smith Machine? Home vs Commercial

As of October 2026, the machines we carry run from about $400 to about $6,600. Entry home units (PSM144X, BFSM250B, PSM200) run roughly $400–$800. Angled machines and Smith gyms for serious home gyms sit around $1,500–$3,100, from the Series 7 GS348B to the Series 7 Smith Gym Package. Counterbalanced machines from Body-Solid ProClubLine, York Barbell and Muscle D Fitness run about $2,650–$4,000, and 3D and combo machines run about $4,000–$6,600. Budget separately for weight plates, a weight bench and any attachments, such as lat or pec attachments for the Powerline and Series 7 frames.

If you are shopping for a commercial Smith machine for a studio, school or facility, look for heavier steel, bearings rather than bushings, counterbalancing and a high stated capacity. The SCB1000B uses oval 11-gauge steel, and Body-Solid positions it for police and fire departments, military installations and schools. Muscle D builds its machine with oversized tubing for professional gym use. The PSM200, listed for residential use, is built from 2" × 2" 12-gauge steel. Before you buy any machine, read the manufacturer's warranty information for that model and confirm it covers how the machine will be used, at home or in a facility.

From the Trainer: How I Would Choose

As a certified personal trainer, I start with who is lifting. If the household includes a beginner, an older lifter or anyone returning from a long layoff, a counterbalanced bar lets them start light and progress in small steps, which is hard to do when the bar alone weighs 25 lb or more. If the lifter is experienced and also trains with a free barbell, an angled Smith with a built-in free-weight rack, like the Series 7 or PSM200, gives the most use per square foot.

Whatever you buy, set the safety stops just below the bottom of your range before every set, and take a minute to find your foot position before you load heavy: on a fixed bar path, your stance is what adjusts, not the bar. Learn your machine's starting bar weight and log it, so your numbers stay honest. And if this is going to be the only strength machine in the room, consider a combo or Smith gym package so you also have cable work for rows, pulldowns and pressdowns.

Our Smith Machine Recommendations by Buyer

Tight budget, standard plates: the Powerline PSM144X. Home gym with Olympic plates: the Best Fitness BFSM250B, or the PSM200 if you want a half rack in the same frame. Serious home gym: the Series 7 GS348B, which can grow into the full Series 7 Smith Gym Package. Mixed-strength households and light starting loads: the counterbalanced SCB1000B at 6 lb. Studios and facilities: the Muscle D commercial Smith or the SCB1000B. Counterbalanced with an angled bar: the York STS. One machine, whole body: the Muscle D DAP / Smith Combo, or the Powerline Smith Gym at home. Multi-plane free-weight feel with Smith safety: the Muscle D MAX Rack.
